Native Instruments - Traktor Audio 2 MKII

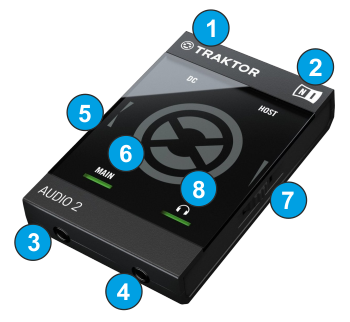

LAYOUT

1. DC IN: Optional power supply (DC Adapter). Traktor Audio 2 MKII is USB powered device.


2. USB HOST: Use a USB cable to connect Traktor Audio 2 MKII with a USB port of a computer


3. MAIN OUT: 1/8" Main Sound Output socket. Connect your Speakers or route signal to an analog mixer


4. HEADPHONES OUT: 1/8" Headphones/Secondary Sound Output socket. Connect your Headphones or route signal to an analog mixer


5. CH MIX: Blend Main and Headphones audio signals prior sending to the Headphones Channel


6. MAIN LED: Indicates Main Output Channel Signal


7. HEADPHONES LEVEL: Headphones Channel Output Volume


8. HEADPHONES LED: Indicates Headphones/Secondary Output Channel Signal



Internal Mixer Setup
